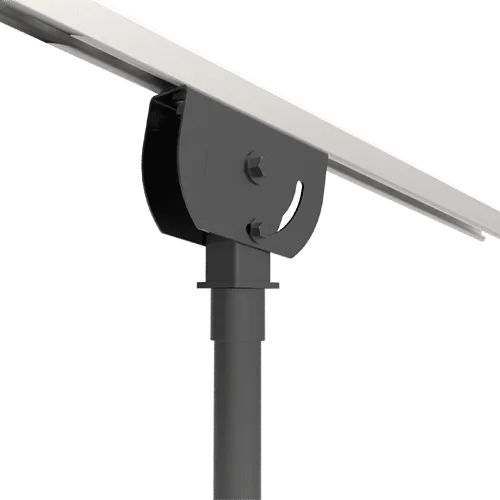

Use Adaptive’s gimballed strut attachment to suspend loudspeakers, videodisplays and other objects from Unistrut when attached to angled ceilingand roof structures, up to 90 degrees off vertical. This adapter mountsquickly and permanently to Unistrut channel with 1/2-13 spring loadednuts (not included) or can be bolted through the strut when space permits.This SwivelMount suspends and locks objects weighing up to 150 lb usingstandard 1- 1/2” diameter steel pipe.
Features
- For overhead audio & video applications.
- Adapts to standard off-the-shelf schedule 1-1/2” NPT
and NPS threaded steel pipe
Specifications
| Material: Structural Steel | 1 pc Gimballed Strut Adapter | |
| Finish: Powder Coat | 2 pc 3/8” Flat Washer | |
| Color: Black | 2 pcs 2 pcs Flange bolt ½-13×2” | |
| Design Factor: 7:1 | 2 pcs Retainer nut,1/2-13 | |
| WLL: 150 lb / 68 Kg | 2 | pcs Nyloc Nut, 1/2-13 |
| Shipping Weight: 6.5 lbs / 3 Kg | 1 pcs Instruction Sheet |
