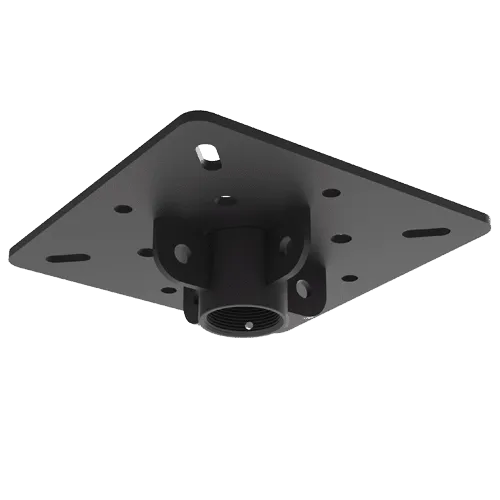

The MP-150-115-CM attaches audio and video mounts to flat ceiling or structures. This ceiling mount assembly accepts a standard 1-1/2”-11.5 NPT pipe. With the added reducer bushing adapters, it accepts ½-14 NPT and ½-13 threaded rods. The MP-150-115-CM is designed to hold overhead speakers with a maximum weight of 454 lbs.
Features
- For overhead audio & video applications.
- Adapts to standard schedule-40 1-½” pipe and to
schedule-40 ½” pipe (using the incl. pipe reducer).
Specifications
| Material: Structural Steel | 1 pc Ceiling Mount | |
| Finish: Powder Coat |
1 pc 1-½ “ to ½-14 NPT pipe reducer bushing/adapter |
|
| Color: Black |
1 pc ½ -14 to ½-13 thread reducer bushing/adapter |
|
| Design Factor: 7:1 | 2 pcs Set Screw, ¼-20 | |
| WLL: 454 lbs / 205.931 Kg | ||
| Shipping Weight: 7.0 lbs / 3.18 Kg |
