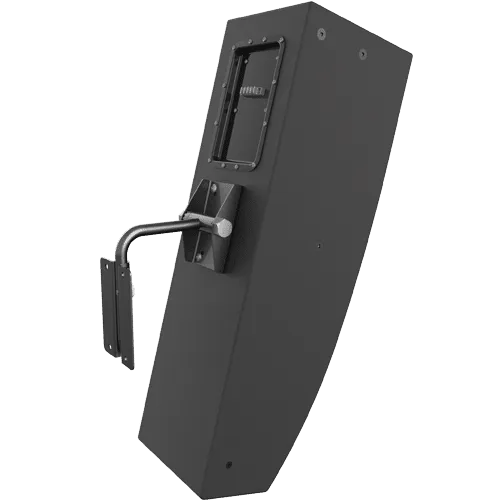

This universal speaker mount supports loudspeakers with the 90 x 90mm or 100 x 100mm mounting pattern weighing up to 60 lbs., quickly attaching them to walls, ceilings, overhangs, and other structural members in either the vertical or horizontal orientation. Speakers are independently aimed and locked in almost any direction or angle through the use of independent pan and tilt adjustments.

The MM-023-BT’s unique support arm acts as a convenient carrying handle to lift speakers into place then inserts into the wall mounting plate. Once inserted, the mounting plate supports the weight of the speaker, leaving the installers hands free to complete the wiring and positioning process.

Tilt adjustments are made at the side of the speaker adapter plate. Panning adjustments are made at the mounting plate.

Features

• Independent, no drift, pan and tilt controls
• Infinite locking adjustments
• No lock memory – no drift
• Single man speaker installations
• Conforms to 90 x 90mm and 100 x 100mm mounting hole patterns

Specifications
