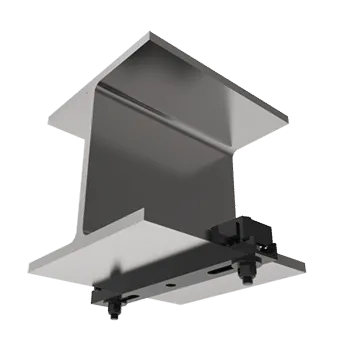

Use the BC7-12-0 channel style beam clamp to provide a load rated overhead rigging point from structural I-Beams with flange widths ranging between 7” and 12” (178-305mm ). This beam clamp model provides a fast, easy and safe way to rig direct loads from overhead and a hand wrench is all that is required to secure this clamp.
Features
- ingle center hang points for 1/2″ to 5/8″ dia. threaded rod.
- Provides safe load-rated hang points
- Clamps securely to beam flanges ranging from 7″ – 12″
Specifications
| SPECIFICATIONS | PACKAGE CONTENTS |
| Material: All Steel Components | 1 pc 7”-12” Beam Clamp Channel |
| Width:(BC7-12-0) 7” to 12” | 2 pcs Locking Angle Plate |
| WLL:1600 lbs / 726 Kg. | 2 pcs Flat Washer, 5/8” |
| Finish: Powder Coat | 2 pcs Nyloc Nut, 5/8-11 |
| Color: Black | |
| Design Factor: 5:1 | |
| Shipping Weight: 5.21 lb / 2.3 Kg | |
