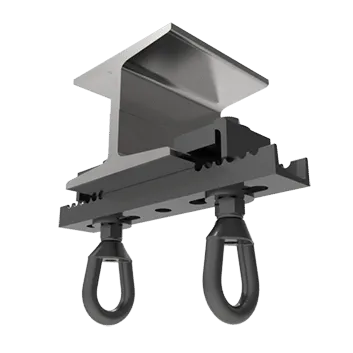

Use the BC3-8-2 channel style beam clamp to provide an offset load rated overhead rigging point from structural I-Beams with flange widths ranging between 3” and 8” (76-203 mm). This beam clamp model provides a fast, easy and safe way to rig direct loads, bridles and hitches. A hand wrench is all that is required to secure the clamp to the beam. Beam flanges must be parallel to the floor to achieve the stated safe working loads.
Features
- For Beam Flanges 3″-8″
- Two load-rated suspension points
- Clamps quickly / permanently to I-Beams
Specifications
| SPECIFICATIONS | PACKAGE CONTENTS |
| Material: All Steel Components | 2 pcs 5/8” eye nut |
| Width: (BC3-8) 3” to 8” / 76mm to 203mm | 1 pc Channel Clamp |
| WLL:2100 lb / 953 Kg WLL (VERTICAL) | |
| Finish: Powder Coat | |
| Color: Black | |
| Design Factor: 4:1 | |
| 45 DEG. WL: 825 lb / 375 Kg |
